$2,150.00
/
Axle Size

Details

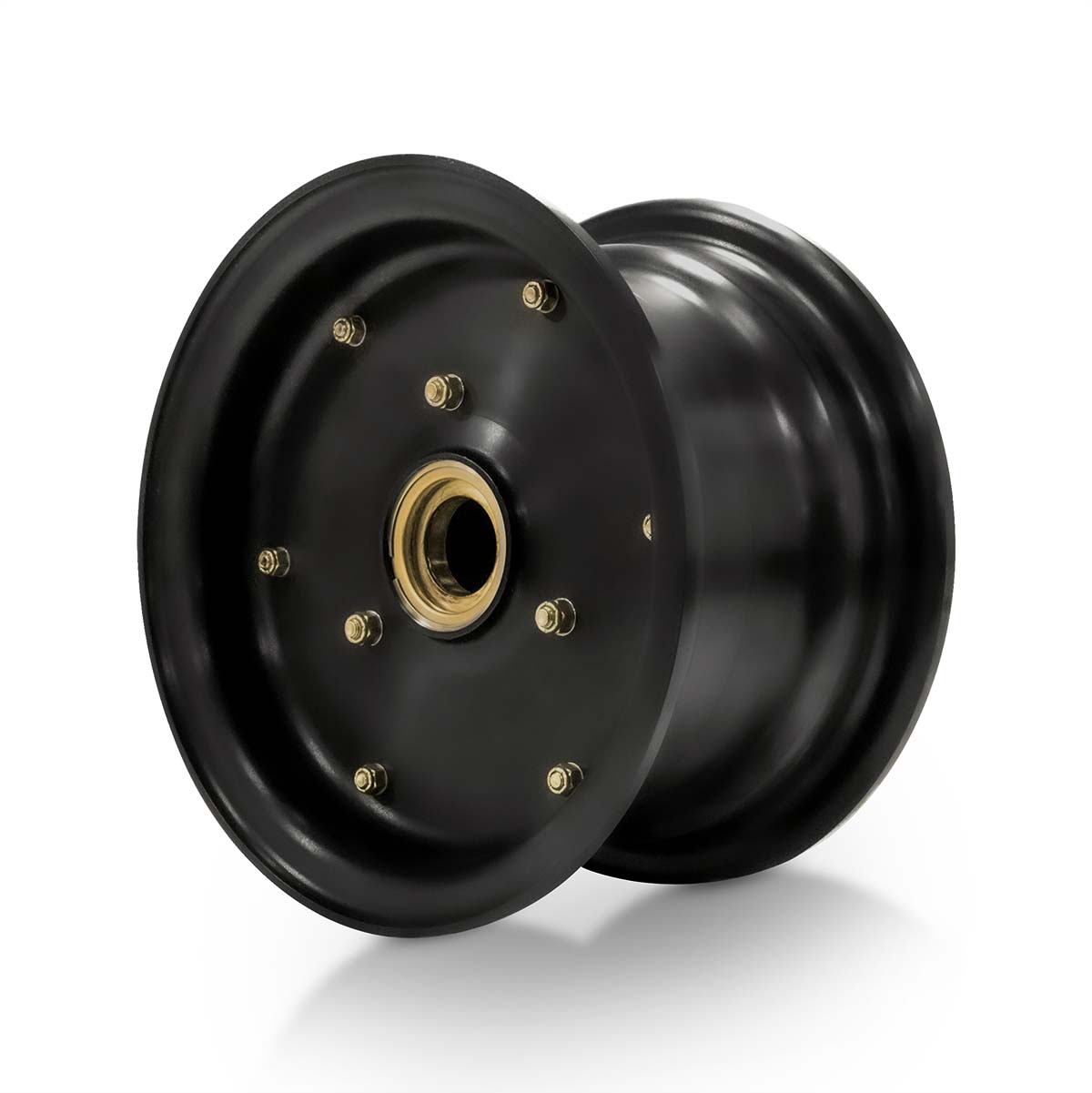

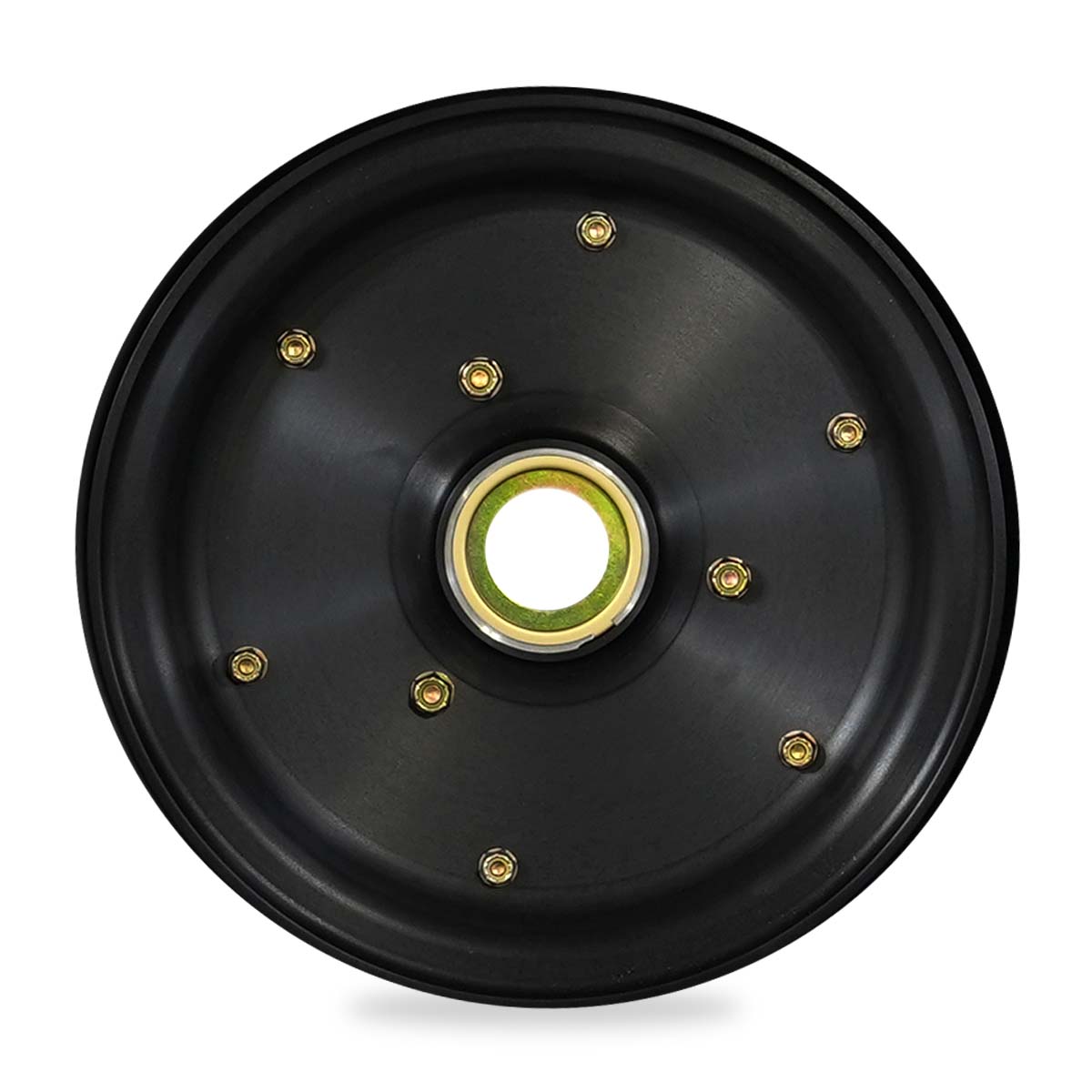

The ABI 10x650 wheel is a robust wheel assembly designed specifically for Alaskan Bushwheels' 35" tires. Crafted from durable cast aluminum, it comes in both 1.25" and 1.5" axle sizes. The ABI 10x650 is FAA/PMA approved and compatible with various aircraft, including Piper and Husky models. The precision-machined hub features a beadlock ring for additional security for tube-style tires. The heat-treated, high-strength aluminum alloy construction ensures it can handle the most challenging off-airport landings a bush pilot will encounter.

Piper and Husky aircraft require an axle spacer kit for installation on a 1.25" axle. This kit does not allow the use of a 1.25" wheel on a 1.5" Axle.

Overview

The ABI 10x650 wheel is the heavy-duty wheel for Alaska, built to withstand the rigors of extreme bush flying, it is designed to run the largest 35" Alaskan Bushwheels and is a testament to durability and reliability. Crafted from solid cast aluminum, it boasts a robust construction that can handle the harshest conditions with ease, making it an indispensable companion for pilots who routinely navigate unforgiving backcountry terrain.

Available in both 1.25" and 1.5" axle sizes, the ABI 10x650 wheel is a versatile choice that has received FAA/PMA approval. Its precision-machined hub incorporates a beadlock ring, adding an extra layer of security for tube-style tires during challenging landings. The heat-treated, high-strength aluminum alloy construction ensures that this wheel assembly can not only endure but excel in the most demanding off-airport landing scenarios. For bush pilots and adventurers who seek unwavering performance and peace of mind in the face of adverse conditions.

Technical Specs

Features

Heavy-Duty Construction: Crafted from rugged cast aluminum, designed to endure the most challenging conditions of bush flying.

Made for 35" Alaskan Bushwheels: Tailored to work seamlessly with Alaskan Bushwheels' largest 35" tires for extreme backcountry operations.

Multiple Axle Sizes: Available in both 1.25" and 1.5" axle sizes to accommodate a variety of aircraft.

FAA/PMA Approved: Officially approved by the FAA/PMA, ensuring adherence to stringent safety and quality standards.

Precision-Machined Hub: Features a meticulously machined hub for added strength and performance.

Beadlock Ring: Incorporated beadlock ring on the hub for secure attachment of tube-style tires during rugged landings.

Heat-Treated Aluminum Alloy: Utilizes heat-treated, high-strength aluminum alloy for exceptional durability.

Bush Pilot's Choice: Trusted by bush pilots and backcountry enthusiasts for its resilience in challenging terrains.

Protect Against Water and Salt: Constructed with corrosion-resistant aluminum guarding against damage from water and salt, making it suitable for aircraft operating in coastal and undeveloped locations.

Technical Specs

Part Number
ABI-10650
Wheel Diameter
10-Inch
Axle Size
1.25" or 1.5"
Brake Disc Bolt Configuration
3-Bolt
1.5" Axle Brake Disc
3-Bolt (164-03601)
1.25" Axle Brake Disc
3-Bolt (164-06700AB)
1.5" Axle Wheel Assy Weight
14 LBS
1.25" Axle Wheel Assy Weight
13.2 LBS

Replacement Parts

10x650 Outer Wheel Half $655.00
10x650 Inner Wheel Half $653.00
Bearing Race $18.40
Bearing Cone | 1.5" Axle $23.50
Bearing Cone | 1.25" Axle $23.20
Seal Ring (ABI-153-00400) $12.70
Felt Grease Seal (ABI-154-01300) $9.20
Retaining Snap Ring (ABI-155-00100) $10.40
Seal Ring (ABI-153-00300) $11.50
Seal Cup (ABI-153-01500) $17.30
Felt Grease Seal (ABI-154-00300) $8.05
AN960-416L Washer $0.08
Bolt (AN4-35A) $2.30
3-Bolt Brake Disc | 1.5" Axle $283.00
3-Bolt Brake Disc | 1.25" Axle $180.00
Wheel Bolt (AN5-36A) $4.45
AN960-516L Washer $0.14
Locknut (MS21044-N5) $0.60
