Name: ABI Lightweight 10x650 Wheel Assembly
Brand: ABI
SKU: 4346686
Price: 2753.0 USD
Availability: InStock

$2,753.00

Axle Size

1.5"

1.25"

Quantity

[{"id":41434154369081,"title":"1.5\"","option1":"1.5\"","option2":null,"option3":null,"sku":"4346686","requires_shipping":true,"taxable":false,"featured_image":{"id":34711939252281,"product_id":7063440031801,"position":2,"created_at":"2024-10-17T09:49:39-08:00","updated_at":"2024-10-17T09:49:40-08:00","alt":null,"width":1200,"height":1200,"src":"\/\/alaskagearcompany.com\/cdn\/shop\/files\/abi-lightweight-10x650-wheel-assembly-abi-10650-Black_bd604c9a-ea6a-49eb-94dd-d3e02a790085.jpg?v=1729187380","variant_ids":[41434154369081,41434154401849]},"available":true,"name":"ABI Lightweight 10x650 Wheel Assembly - 1.5\"","public_title":"1.5\"","options":["1.5\""],"price":275300,"weight":7257,"compare_at_price":250000,"inventory_management":"shopify","barcode":"ABI-10650LW 1.5","featured_media":{"alt":null,"id":26992681975865,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/alaskagearcompany.com\/cdn\/shop\/files\/abi-lightweight-10x650-wheel-assembly-abi-10650-Black_bd604c9a-ea6a-49eb-94dd-d3e02a790085.jpg?v=1729187380"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41434154401849,"title":"1.25\"","option1":"1.25\"","option2":null,"option3":null,"sku":"4346685","requires_shipping":true,"taxable":false,"featured_image":{"id":34711939252281,"product_id":7063440031801,"position":2,"created_at":"2024-10-17T09:49:39-08:00","updated_at":"2024-10-17T09:49:40-08:00","alt":null,"width":1200,"height":1200,"src":"\/\/alaskagearcompany.com\/cdn\/shop\/files\/abi-lightweight-10x650-wheel-assembly-abi-10650-Black_bd604c9a-ea6a-49eb-94dd-d3e02a790085.jpg?v=1729187380","variant_ids":[41434154369081,41434154401849]},"available":true,"name":"ABI Lightweight 10x650 Wheel Assembly - 1.25\"","public_title":"1.25\"","options":["1.25\""],"price":275300,"weight":6350,"compare_at_price":250000,"inventory_management":"shopify","barcode":"ABI-10650LW 1.25","featured_media":{"alt":null,"id":26992681975865,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/alaskagearcompany.com\/cdn\/shop\/files\/abi-lightweight-10x650-wheel-assembly-abi-10650-Black_bd604c9a-ea6a-49eb-94dd-d3e02a790085.jpg?v=1729187380"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Details

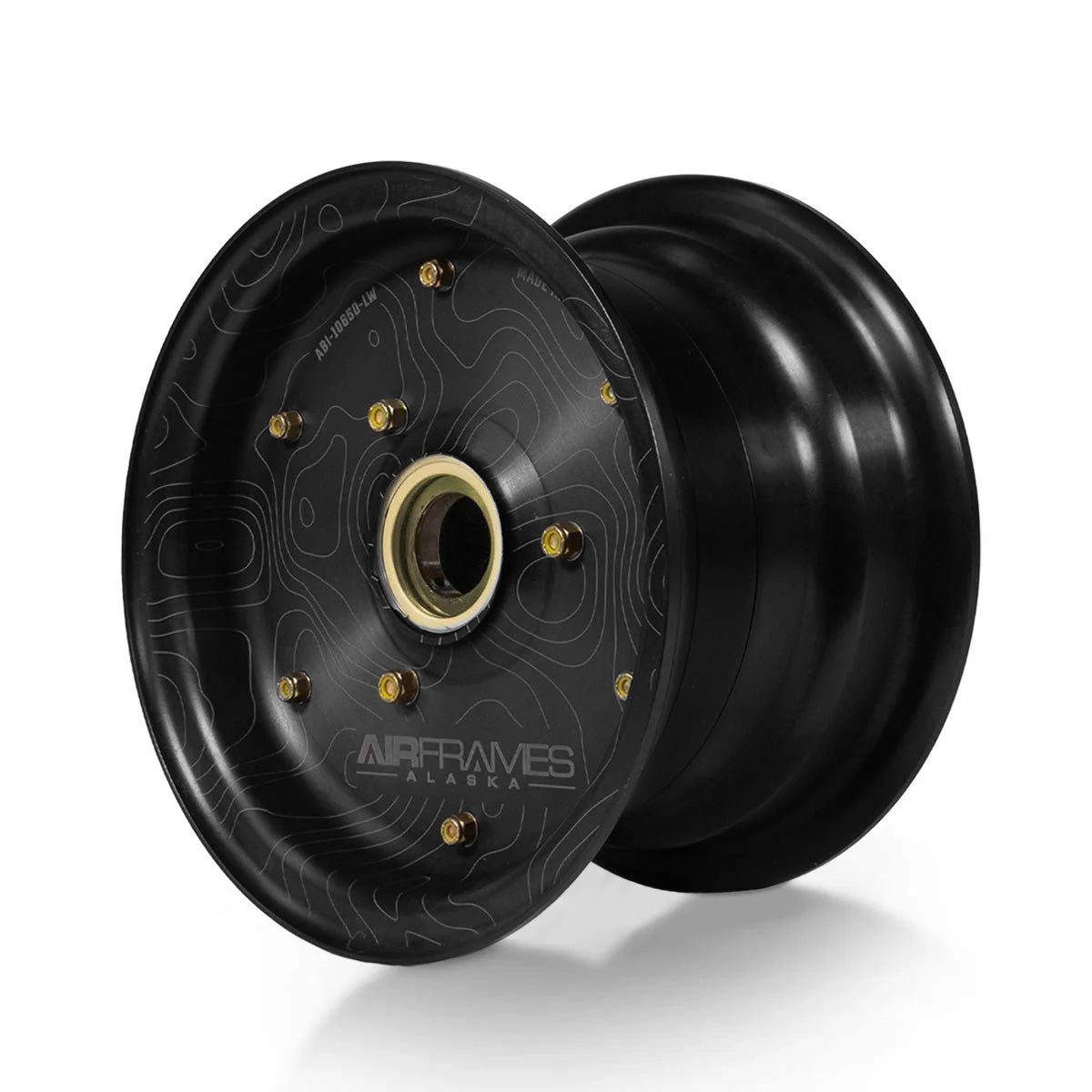

The Lightweight 10650 Wheel from Airframes Alaska offers a remarkable alternative to the original heavy-duty 10x650 wheel. Crafted from cast aluminum, this wheel retains exceptional strength and durability while shedding over 8 lbs.

The Lightweight 10x650 wheel offers the same benefits as the original heavy-duty wheel at half the weight.

Piper and Husky aircraft require an axle spacer kit for installation on a 1.25" axle. This kit does not allow the use of a 1.25" wheel on a 1.5" Axle.

Overview

The Original ABI 10x650 wheel was designed to accommodate the largest and heaviest 35" Alaskan Bushwheel tires used in rugged backcountry environments. This wheel offered exceptional durability and performance, but it came with a significant weight penalty. Now with the Lightweight 10x650, you can take all those advantages and slash the weight in half.

The lightweight 10x650 offers significant value over other lightweight 10-inch wheels and the market. It comes in over 8 LBS lighter per set than the original ABI 10x650 wheel and over 7 LBS lighter than the Grove 10-inch wheel while maintaining the same weight as the Beringer 10-inch Wheel.

The ABI Lightweight 10x650 is compatible with your existing brakes which poses yet another advantage over converting to the Beringer Wheels which require a metric conversion including replacing the Master Cylinder, Brake Calipers, Metric Brake Lines, and fittings, and requires an Axle taper kit. This leads to roughly double the cost for the same reduction in weight.

The ABI Lightweight 10x650 Wheel provides the optimal balance of weight reduction and durability to create the Alaskan-tested and proven 10-inch wheel for navigating backcountry terrains.

Weight Reduction: The Lightweight 10x650 Wheel weighs just 9.6 lbs per set, offering a 50% reduction in weight compared to the standard 10x650 wheel.

Compatibility: This wheel assembly seamlessly integrates with existing ABI brake systems, eliminating the need for brake component replacements.

Robust Construction: Crafted from durable cast aluminum, the Lightweight 10x650 maintains exceptional strength and durability.

Optimized Performance: Aircraft equipped with this wheel experience improved performance, particularly in terms of maneuverability and handling.

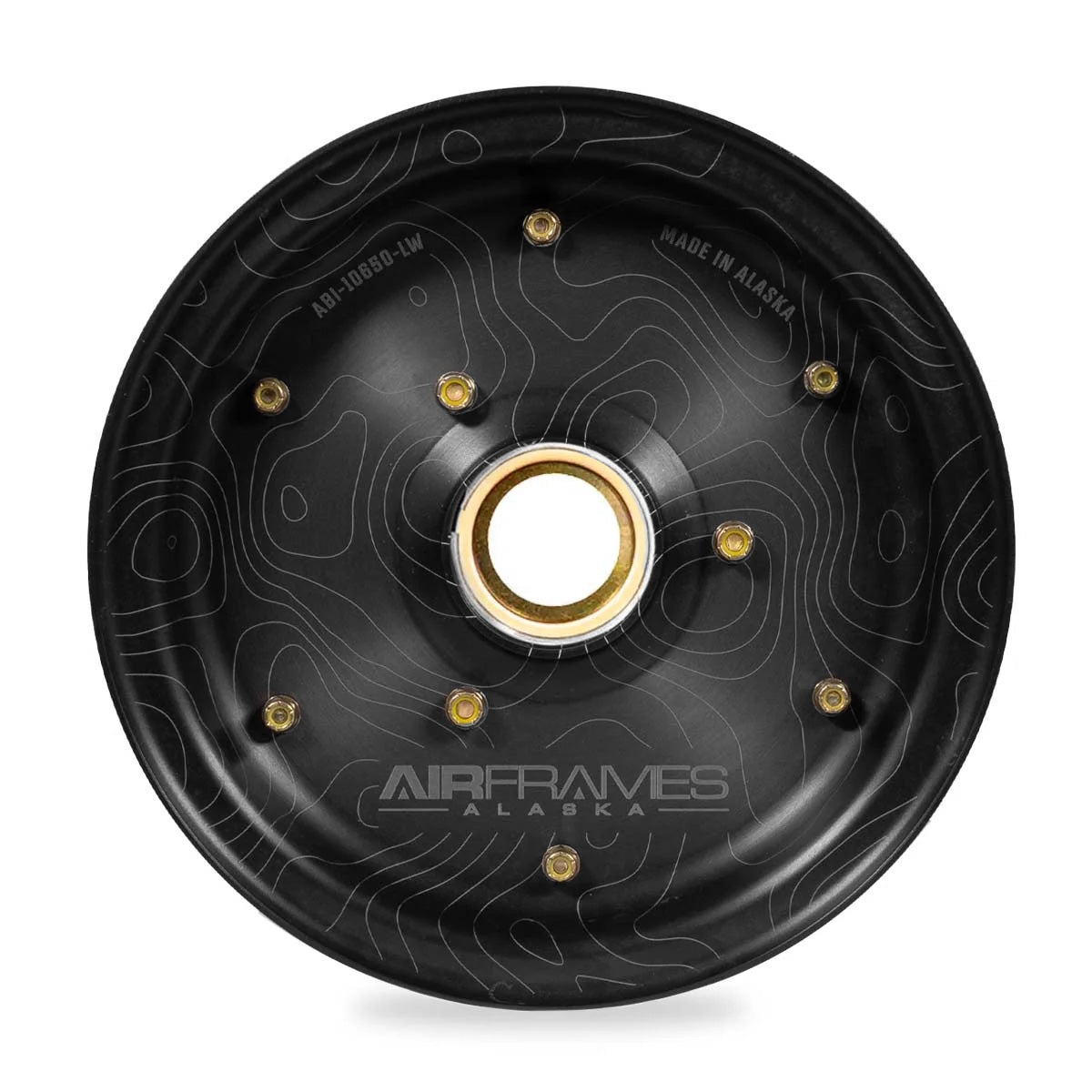

Anodized Finish: The professional anodized gunmetal gray finish adds a sleek and polished appearance to your aircraft.

Alaskan Heritage: Proudly made in Alaska, reflecting the adaptability to the rugged and demanding landscape of its origin.

Improved Backcountry Performance: The Lightweight 10650 Wheel allows pilots to drop weight without compromising their ability to land safely in the backcountry.

Designed for the Alaskan Bushwheels: The Lightweight 10650 Wheel is the standard wheel made to fit the Alaskan Bushwheels' 35" tires, ensuring optimal compatibility and performance in rugged and off-airport environments.

Technical Specs

Part Number

ABI-10650-LW

Wheel Diameter

10-Inch

Axle Size

1.25" or 1.5"

Brake Disc Bolt Configuration

3-Bolt

1.5" Axle Brake Disc

3-Bolt (164-03601)

1.25" Axle Brake Disc

3-Bolt (164-06700AB)

1.5" Axle Wheel Assy Weight

9.6 LBS

1.25" Axle Wheel Assy Weight

8.8 LBS

Replacement Parts

Order Replacement Parts

Documents

Approved Model List (AML) VIEW

INSTALLATION INSTRUCTIONS & ICA VIEW

Back to ABI Wheel Assemblies

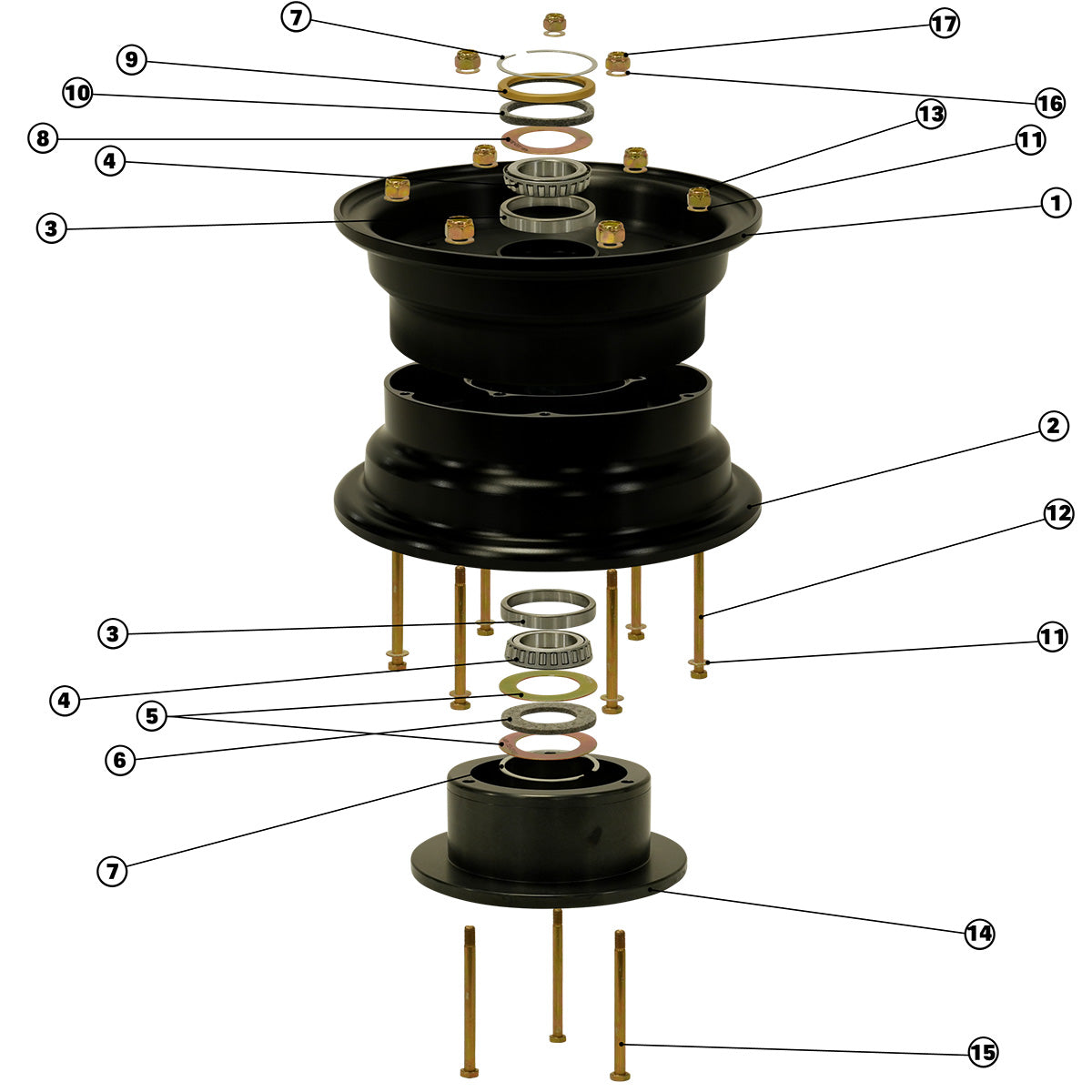

	10x650 Outer Wheel Half	$783.00
	10x650 Inner Wheel Half	$783.00
	Bearing Race	$18.40
	Bearing Cone \| 1.5" Axle	$26.80
	Bearing Cone \| 1.25" Axle	$23.20
	Seal Ring (ABI-153-00400)	$12.70
	Felt Grease Seal (ABI-154-01300)	$9.19
	Retaining Snap Ring (ABI-155-00100)	$10.40
	Seal Ring (ABI-153-00300)	$11.50
	Seal Cup (ABI-153-01500)	$17.30
	Felt Grease Seal (ABI-154-00300)	$8.05
	AN960-416L Washer	$0.08
	Bolt (AN4-35A)	$2.30
	3-Bolt Brake Disc \| 1.5" Axle	$283.00
	3-Bolt Brake Disc \| 1.25" Axle	$180.00
	Wheel Bolt (AN5-36A)	$4.45
	AN960-516L Washer	$0.14
	Locknut (MS21044-N5)	$0.60
