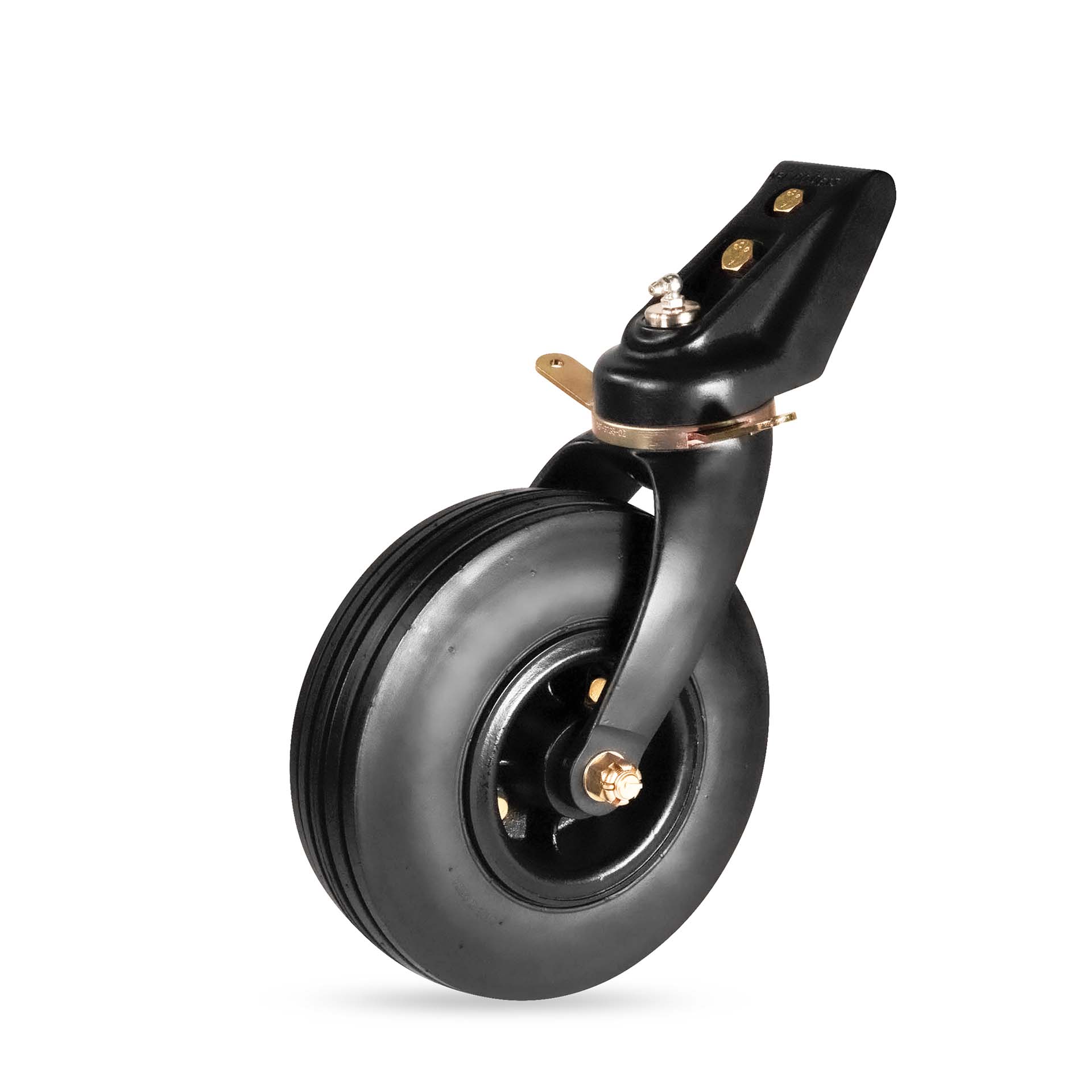

Name: ABI 3200 Scott Replacement Tailwheel Assembly
Brand: ABI
SKU: 4332306
Price: 1900.0 USD
Availability: InStock

Details

The ABI 3200 Tailwheel Assembly is a lightweight, 8-inch direct replacement for the Scott 3200 tailwheel assembly. It offers extended steering control, easy automatic swivel release, and sealed protection against water, sand, and mud. With precision components and grease fittings for lubrication, it ensures reliable performance in challenging conditions.

Overview

ABI 3200 series tailwheels are a PMA'd direct replacement for the original 3200 Scott Tailwheel series. These tailwheels are proudly manufactured and assembled in the United States at our facility in Alaska, renowned as the global hub for general aviation and the world's most remote backcountry flying.

The ABI 3200 Series Tailwheel is designed to offer Variable Steering Control, allowing pilots to manipulate the tailwheel via rudder pedals while also providing the option to engage a free caster mode, particularly beneficial in navigating backcountry landscapes. Its exceptional maneuverability and adaptability set it apart from traditional rudder systems.

One notable feature is the Sealed & Lubricated Swivel Mechanism, meticulously designed to prevent the intrusion of contaminants like sand, dirt, water, gravel, and mud, which can compromise the performance of tailwheel assemblies. This innovative design ensures the longevity and reliability of the ABI 3200 Series Tailwheel. Additionally, it is supported by a comprehensive catalog of PMA parts, simplifying maintenance and repair processes.

Variable steering allows for the transition between rudder control and free caster mode for better adaptability to various ground conditions.

Equipped with a long pawl for faster breaks into free caster allowing for better tail control in uneven and unpredictable environments.

Sealed and lubricated swivel mechanism provides smooth control while keeping the internals protected from debris encountered in backcountry conditions.

PMA'd direct replacement allows for simplified replacement of the original Scott 3200 Tailwheel series.

Full catalog of PMA'd replacement parts allows for easy maintenance and repair of your ABI 3200 tailwheel.

Multiple arm control options allow for the best fitment based on your aircraft's geometry and pilot preference.

Bent-arm control provides faster response and improved durability. Straight-arm control allows for smoother steering and better control of break into free caster mode.

Straight-arm control allows for smoother steering and better control of break into free caster mode.

Made in the USA in our manufacturing facility located in the heart of Alaska, the general aviation and backcountry flying capital of the world.

Technical Specs

Assembly Weight - ABI-3200 (S)

8.2 lbs

Assembly Weight - ABI-3200 (T)

8.2 lbs

Assembly Weight - ABI-3200-3

12.2 lbs

Leaf Spring Width

1 3/4"

Pawl Size

Long Pawl

Compatible Wheel Size

Standard 8" Tire

ABI-3200 (S) - Shimmy Dampener

KEG-116

ABI-3200 (T) - Shimmy Dampener

KEG-117

ABI-3200-3 - Shimmy Dampener

KEG-118

Replacement Parts

Order Replacement Parts

Documents

supplemental type certificate (STC) SHOP

Approved Model List (AML) VIEW

INSTALLATION INSTRUCTIONS VIEW

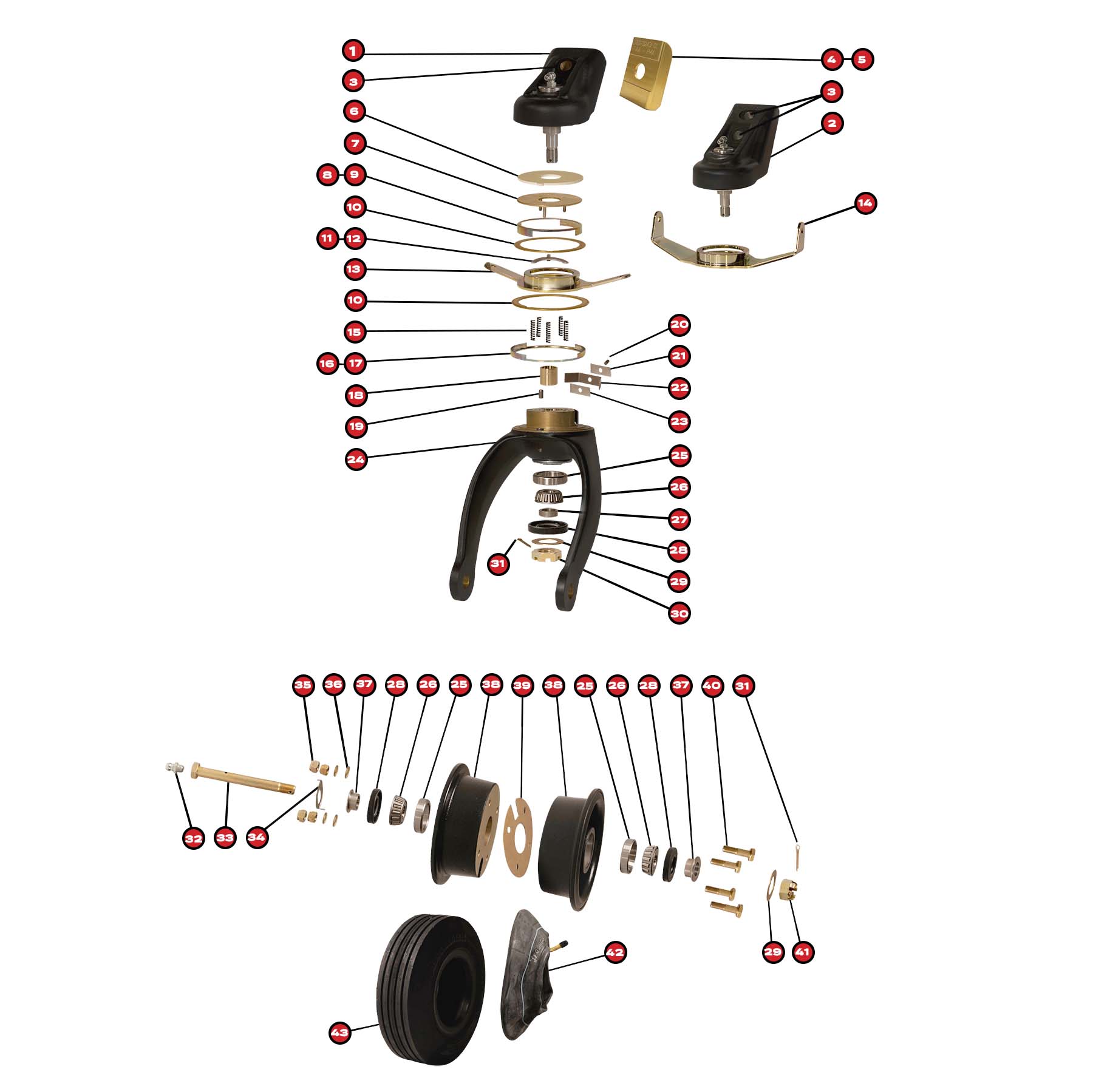

Back to Tailwheel Assemblies

	ABI-3216-00 3200 1-Bolt Tailwheel Head	$352.00
	ABI-800613 3200 2-Bolt Tailwheel Head	$446.00
	ABI-3241-3S Spacer	$12.90
	Leaf Spring Adapter \| 1.5"	$69.20
	Leaf Spring Adapter \| 1.25"	$69.20
	ABI-3207-00 Fiber Thrust Washer	$8.21
	ABI-3234-00 Thrust Plate Assembly	$59.20
	ABI-3235-02 Dust Cap, Upper (3200 Straight Arm)	$39.90
	ABI-3256-2 Dust Cap, Upper (3200 Bent Arm)	$39.90
	ABI-3206-00 Thrust Washer	$17.90
	ABI-3219-02 Long Pawl	$46.80
	ABI-3219-00 Short Pawl	$46.80
	3200 Straight Steering Arm Assembly	$317.00
	3200 Bent Steering Arm Assembly	$317.00
	ABI-3233-00 Compression Spring	$4.11
	ABI-3256-1 Dust Cap Lower (3200 Bent Arm)	$39.90
	ABI-3235-01 Dust Cap, Lower (3200 Straight Arm)	$39.90
	ABI-3205-00 Bushing	$34.50
	ABI-3257-00 Pin	$9.68
	ABI-3258-00 Spacer	$2.76
	ABI-3222-00 Turn Lock Spring	$15.20
	ABI-3258-01 Spacer	$2.76
	ABI-232-046 Dowel Pin	$15.20
	3200 8" Tailwheel Fork	$387.00
	A4138 Bearing Race	$18.19
	A4050 Cone Bearing	$40.15
	ABI-2504-01 Spacer	$17.90
	ABI-1863 Bearing Grease Seal	$11.10
	AN960-816 Washer	$0.32
	AN320-8 Shear Nut	$6.88
	MS24665-283 Cotter Pin	$0.27
	T7201 Zerk Fitting	$2.50
	ABI-3236 Axle Bolt	$52.20
	ABI-3225-00 Tab Lock Washer	$7.04
	MS21044N4 Self Locking Nut	$0.30
	AN960-416 Washer	$0.20
	ABI-3227-00 Spacer	$26.40
	ABI-3244K Wheel Half	$164.00
	ABI-2602 Gasket	$4.11
	AN4-7A Wheel Bolt	$0.27
	AN310-8 Castle Nut	$7.00
	280 x 2.50 x 4" Tube	$43.98
	Standard 8-Inch Tailwheel Tire	$95.00
